The DuroMax XP9HP is one of our most compact and lightweight engines available, but don’t let the size fool you; this powerful 274 cc 4-stroke OHV engine has plenty of power for multiple light duty applications including go karts, pressure washers, trailer mounted-mobile carwashes, log splitters, roto tillers- cultivators, and water/trash transfer pumps. The engine is equipped with convenient features like a large 1.3-gallon gas tank for longer runtimes, an E-Z pull recoil starter for starting the engine with ease, and EPA and CARB approved for safe mandated use.
Features
- 274 cc 4-Stroke OHV engine

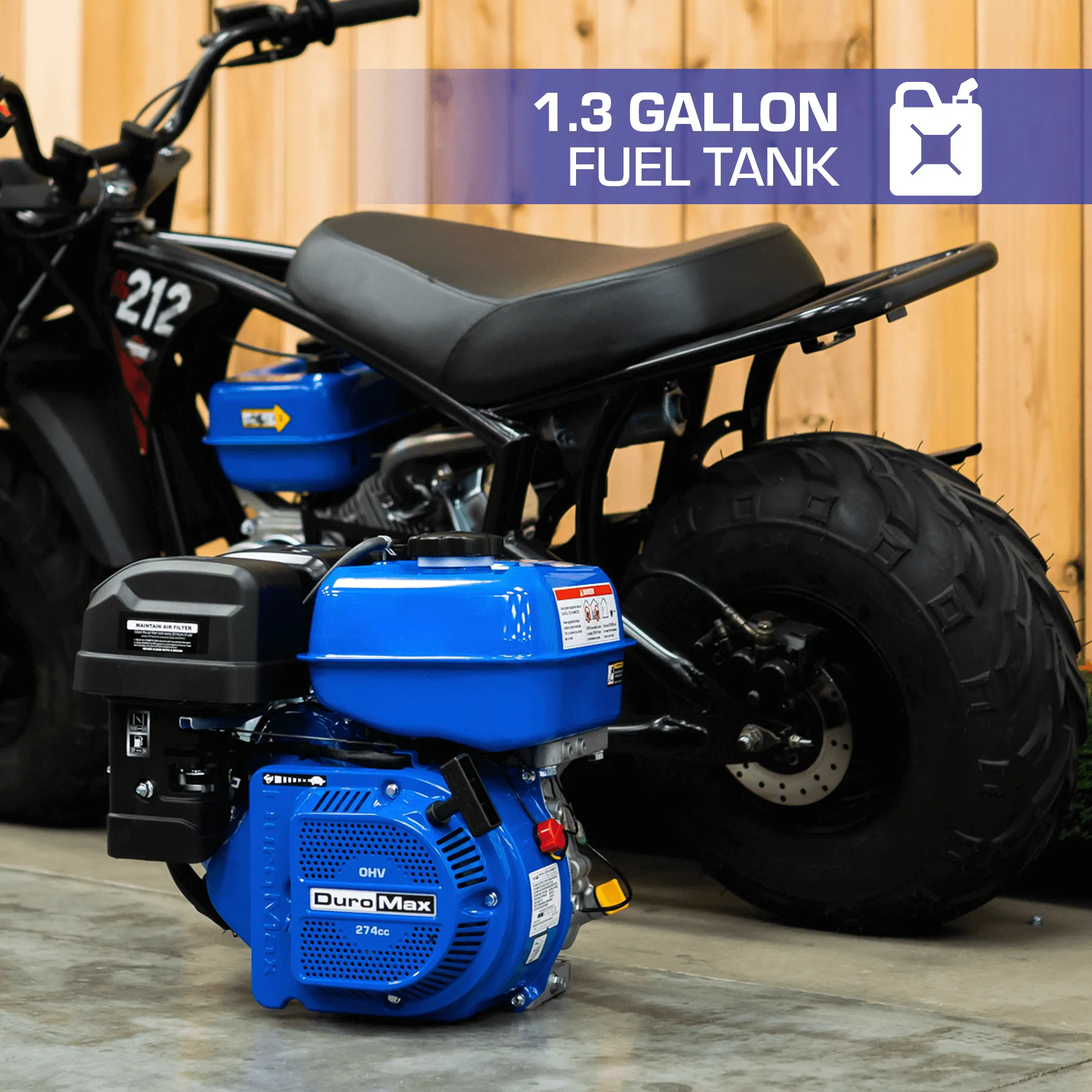

- Large 1.3-gallon fuel tank
- Runs on standard 87 Octane gasoline or propane
- E-Z pull recoil starter
- Air Cleaner: Dual, semi-dry, oil bath
- EPA approved for safe mandated use
- Applications: Go Karts, Pressure Washers, Trailer Mounted - Mobile Carwashes, Log Splitters, RotoTillers - Cultivators, Water/Trash Transfer Pump
What's in The Box
- DuroMax XP9HP Engine
- Spark Plug Wrench
- Oil Funnel
- Owner's Manual
Warranty
- 3-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | XP9HP |
| Brand | DuroMax Power Equipment |
| Engine Type | 4-Stroke |
| Valve Type | OHV |
| Engine Cooling Type | Forced Air |
| Displacement | 274 cc |
| Bore | 75 mm |
| Stroke | 62 mm |
| Max Output | 3600 rpm |
| Max Torque | 16.5 N·m @ 2500 rpm |
| Shaft Orientation | Horizontal |

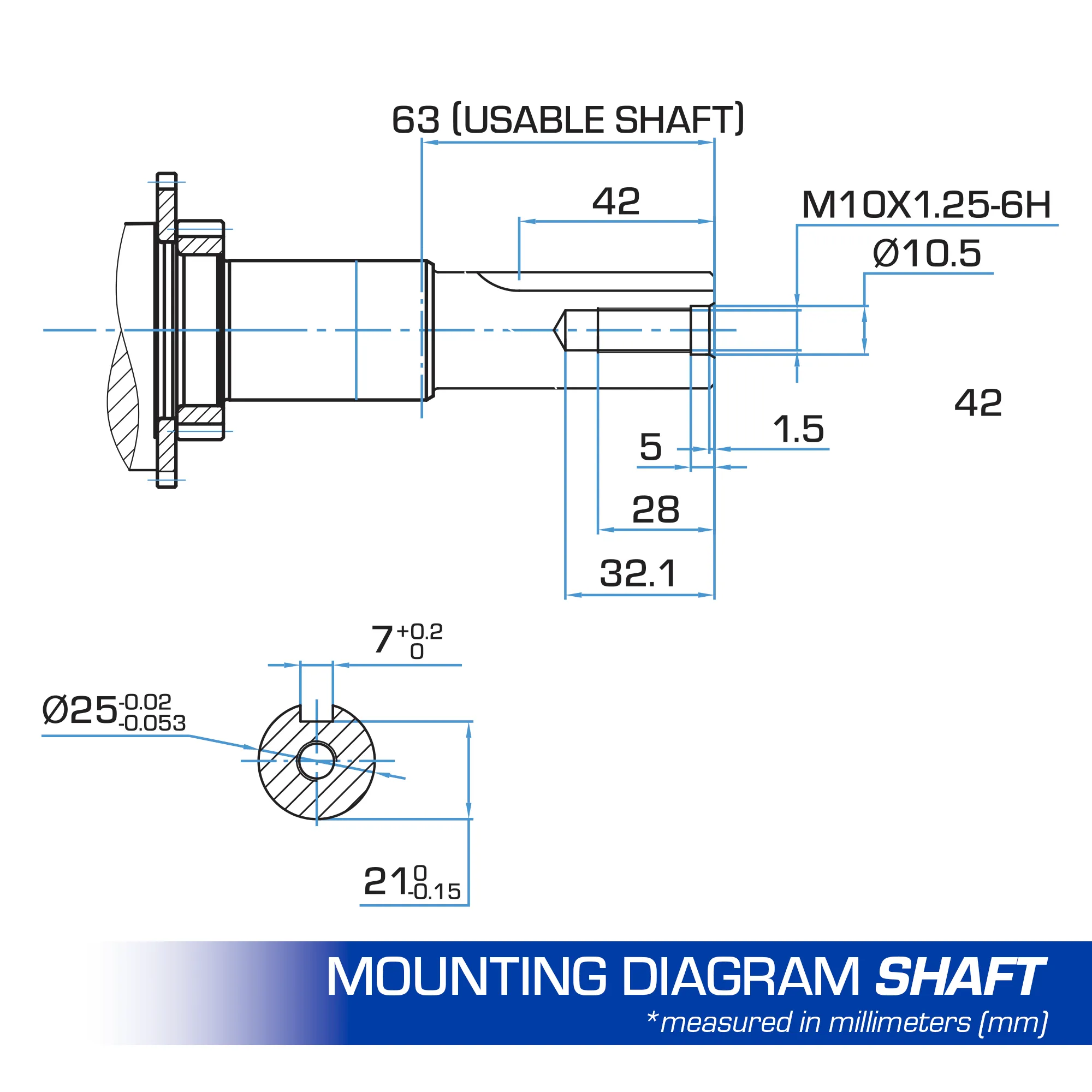

| Shaft Size | 0.984� diameter, 2.48� long, 0.276� keyway |
| Shaft End | M10 x 1.25 - drilled and tapped |
| Shaft Rotation | Counter-Clockwise |
| Measurement from Center of Shaft to Base | 4.175� |
| Fuel Tank Capacity | 1.3 gallons |
| Fuel Types | Gasoline |
| Fuel Delivery System | Carburetor |
| Average runtime on gasoline | 2.35 hours |
| Starting type | Recoil Start |
| Recoil Start | Yes |
| Cast Iron Sleeve | Yes |
| Bearing Type | Stainless Steel Ball Bearing |
| Oil Cooling Type | Splash |
| Oil Capacity | 23.67 fluid oz. |
| Recommended Oil | 10W-30 |
| Recommended Oil Types | Blended, Conventional, or Synthetic |
| Product Dimensions | 16.4� L x 13.2� W x 15.1� H |
| Weight | 41.9 lbs |
| UPC | 811640016821 |
| EPA Certified | Yes |
| CARB Certified | No |
| 50 State Emissions | No |
